Auditorium Dimmer Project

New Auditorium for Malaysia’s Largest Chinese Newspaper

The smart new auditorium was recently completed in Kuala Lumpur for Nanyang Siang Pau, Malaysia's oldest and most respected Chinese-language newspaper. The newspaper uses the new facility for internal seminars, conferences and staff gatherings, as well as for public presentations and seminars. As such, a sophisticated mix of AV and lighting equipment was specified and installed to provide professional-level support for all functions and events.

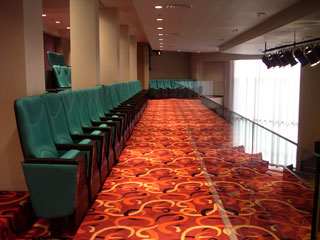

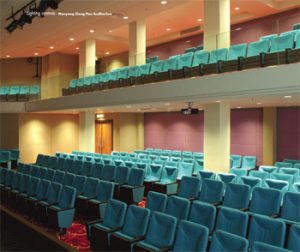

On the main auditorium level, tall curtained side windows and recessed overhead spots in the ceiling create a mix of natural daylight and artificial lighting. Carpet and seating on the main level are the same as the balcony, while cushioned wall panels in shades of wine and sand contrast with the aqua seating for a bright, fresh, contemporary look, made interesting by careful placement of wall down-washers in amber, pale orange and flamingo. Natural wood exit doors augment the warm glow created by colors and lighting.

Lighting is an essential element in the design intent and finished ambiance of this new facility. Inside the auditorium, the lighting design makes use of reflected glow from bright surfaces to create a lively yet soothing ambiance.

With a full-height window wall flanking the stage/screen on one side, daylight sensors linked to lighting controllers allow programmed mixing of natural and artificial daylight as required.

Lighting control for the entire auditorium space was accomplished using the Futronix PFX-16 dimmer system, plus accessories. Installed out of sight in the compact office/control room, the super-slim all-digital PFX provides 'scene' dimming for both levels of the auditorium, with separate scenes programmable for discrete areas on each level. The PFX dimmer is also programmed to operate other building automation features - including daylight sensor-triggered curtains and shades. Functionality and control are provided by the Futronix Home-Icon® 8.5" colour touchscreen and switch panel outstations.

Also on the upper floor is a small private office/control room, housing the AV systems, mixers & controls, security and emergency systems, and lighting controllers.

With the help of state-of-the-art lighting controls, the décor and design of Nanyang Siang Pau's new auditorium reflect the venerable newspaper's progressive attitude and corporate style.
